Unlike traditional bulky, opaque LED screens, modern transparent LED displays have light transmission, structural flexibility and architectural compatibility. Among these mainstream transparent display options, LED film screens and conventional LED transparent screens are the two most popular choices for glass curtain walls, storefront windows and indoor glass partitions.
Many peole often struggle to choose between the two. Both deliver stunning transparent display effects, yet they differ drastically in structure, performance, installation and applicable scenarios.
To help you pick the right display for your project, SightLED will guide you the differences, working principles.
Core Differences Between LED Film Screens and Standard LED Transparent Screens
At first glance, both screens feature high light transmission and do not completely block natural light, but their structural designs lead to obvious gaps in overall performance and usability. The key comparative differences are summarized in four core dimensions:
Light Transmission:
Both products support transparent display, but LED film screens adopt an ultra-simplified integrated film structure with no bulky box frame. This streamlined design enables a higher light transmission rate than conventional LED transparent screens. They have better indoor daylight permeability when installed on glass surfaces.
Flexibility:
Flexibility is a unique advantage of LED film screens. Made of flexible substrate materials, they can be freely bent and adapted to curved glass and irregular wall surfaces. In contrast, standard LED transparent screens rely on fixed rigid box structures, with no bendable performance, only suitable for flat installation scenarios.
Weight:
LED film screens are ultra-lightweight, with a unit weight of only 1 to 3 kilograms per square meter. This is far lighter than conventional LED transparent screens, which weigh 5 to 8 kilograms per square meter. The lighter weight greatly reduces the load-bearing pressure on buildings and glass structures.
Installation Method:
The LED film screen features a fully adhesive design, allowing direct pasting on clean glass surfaces with extremely simple installation steps and no damage to the original building structure. LED transparent screens require auxiliary fixing brackets and simple steel frame support during installation, making the construction process relatively cumbersome and time-consuming.
Working Principle of LED Film Screens

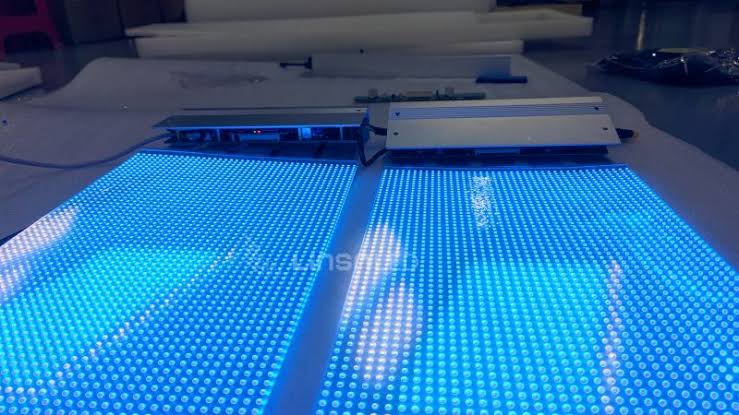

The LED film screen is an upgraded high-end transparent display product. It breaks the structural limitations of traditional LED displays. It adopts customized high-speed dedicated chips and mounts precision electronic components on ultra-transparent PCB substrates. Through a proprietary precision glue-coating process, the entire display module is integrated into an ultra-thin optical lens substrate, with a minimum thickness of merely 1 to 3 millimeters.
Thanks to this innovative manufacturing technology, the screen achieves a perfect combination of high light transmission and stable luminous display. Its core design highlights ultra-thinness, lightweight, bendability and custom cropping. When attached to building glass curtain walls or commercial storefront glass, it will not damage the original architectural aesthetics.
When the screen is not playing content, it is almost invisible, posing no impact on indoor daily lighting. From a distance, there is barely any trace of installed display equipment, making it ideal for high-end commercial building decoration and invisible advertising scenarios.
Craftsmanship Features and Unique Advantages of LED Film Screens
Key Craftsmanship Features
First, the screen adopts high-quality Nationstar LED beads, the industry’s mainstream stable light source components, ensuring long-term stable luminous performance, low light attenuation and long service life.
Second, the light board uses hollowed-out glass fiber boards, and all surface components are sealed with professional vacuum glue filling technology, which enhances the overall airtightness and durability of the screen body.
Third, the fully pastable design fits all glass curtain wall scenarios without any drilling or structural transformation.
Fourth, the product’s light transmission rate reaches up to 85%, realizing true invisible standby state. Fifth, the flexible film structure supports free bending and arbitrary cropping, adapting to various personalized installation sizes.
Comprehensive Product Advantages
Equipped with micron-level luminous chips and protected by transparent high-temperature resistant, anti-static and waterproof adhesive films, the internal drive chips are invisible to the naked eye, achieving a pure transparent visual effect. With an ultra-thin thickness of 1-3mm and a super-light weight of 1-3.5kg per square meter, it completely abandons the traditional box structure.
The screen body uses FPC flexible circuit materials, with excellent anti-collision and anti-fall performance, capable of withstanding 2kg of external impact pressure per square meter, effectively preventing internal component damage.
There is no limit to splicing size, as it can be cropped freely according to the actual glass size. The maximum light transmission rate can reach 86%, fully guaranteeing indoor natural light intake.
In terms of transparent cost , it eliminates the need for steel frame structures and building exterior renovations, greatly cutting transportation, material and construction costs. Its strong flexibility allows installation on any curved glass and arc walls. The installation process is extremely simple – just paste the film screen on a clean glass surface and connect the power and signal lines.
Additionally, the optimized circuit and chip structure greatly improves photoelectric conversion efficiency, reducing equipment failure rates and subsequent maintenance costs. The screen features a 160° ultra-wide viewing angle in all directions, delivering color-accurate, seamless and distortion-free images with no viewing dead angles.
Craftsmanship and Advantages of Standard LED Transparent Screens
Conventional LED transparent screens adopt mature SMD patch packaging technology, with LED beads mounted in the grooves of PCB boards and matched with side-mounted front luminous technology.
The module size can be customized according to project needs. Also known as glass curtain wall LED displays, they are widely used in office building glass curtain walls, shopping mall glass windows and exhibition hall glass partitions, playing corporate promotional videos, product pictures and dynamic advertising content after power on.
First of all, it boasts excellent light transmission performance with a transmittance of over 65%, far exceeding traditional opaque LED screens, presenting a cool and high-tech dynamic display effect.
Secondly, it is lightweight compared with traditional LED screens. A single panel weighs about 6.5 to 8kg, requiring low bearing capacity of steel frames and buildings, avoiding structural safety risks caused by oversized screen bodies.
In terms of aesthetic performance, it only needs a small number of steel frame accessories for installation, which can be perfectly integrated with building walls without damaging the original building appearance, and even enhance the overall modern texture of the building.
For special-shaped projects, conventional LED screens are limited by fixed box structures, prone to obvious splicing gaps and unnatural transitions, while LED transparent screens can be customized into various special-shaped screens such as cylinders, circular truncated cones, triangles and arcs with smooth and beautiful splicing effects.
In terms of later maintenance, it also has obvious advantages. Different from traditional LED screens that need to disassemble the entire module or box for maintenance, LED transparent screens only need to replace individual light strips, and all maintenance operations can be completed indoors, featuring high efficiency, simple operation and low long-term maintenance costs.
Conclusion:
If you pursue ultra-high light transmission, invisible installation, curved adaptation, low load-bearing and low budget transformation, LED film screens are the best choice. They are suitable for high-end shopping malls, luxury storefronts, star hotel glass walls and personalized curved building scenarios. If you need conventional flat transparent display, standardized large-area splicing and cost-effective basic transparent advertising display, traditional LED transparent screens can fully meet the demand.
